LD Series
LD Series Two-sided Labeling Machine Innovative Dual-Sided Labeling System Powered by Advanced Technology
The Autopak LD Series represents the pinnacle of double-sided labeling technology, specifically designed for packaging operations that require specialized labeling formats. Our LD-X1 and LD-X2 systems can simultaneously apply labels to both the front and back of products at speeds of up to 30 meters per minute, delivering unmatched performance and precision for products that demand exceptional labeling.
Autopak LD Series
It is an advanced two-sided labeling technology specifically designed to support high-precision packaging operations.
LD-X1 and LD-X2
Our advanced system is capable of applying front and back labels simultaneously at speeds of up to 30 meters per minute, ensuring exceptional precision and flawless performance.
Dual-Sided Labeling
This system enables simultaneous application of paired labels on both sides, delivering fast, accurate, and efficient performance for high-productivity operations.
Large Products
Large-format products with widths ranging from 25–200 mm and heights from 40–330 mm are fully supported.
Synchronized Precision
High-level simultaneous operation technology ensures precise label alignment on both sides.
Industrial Applications Outstanding Dual-Labeling Performance of the LD Series
Food and Beverage Industry
- Front and back labeling for fruit juice and beverage bottles
- Ingredient and nutritional labeling for food products
- Multilingual labeling for export products
- Premium brand product labeling
Pharmaceuticals and Healthcare
- Labeling of pharmaceutical bottles: regulations and detailed requirements
- Labeling of medical devices: instructions and indications for use
- Labeling of dietary supplement bottles
- Bilingual labeling of hospital equipment
Chemical and Industrial
- Chemical container labeling with safety and product info
- Industrial lubricant labeling with specifications and warnings
- Cleaning product labeling with instructions and branding
- Hazmat compliance labeling with regulatory information and detailed specifications
Export and Premium Products
- Bilingual labeling
- Premium cosmetic branding for front and back packaging
- Luxury product presentation labeling
- Compliance with product labeling regulations
LD Series Innovation Excellence For Double-Sided Labeling

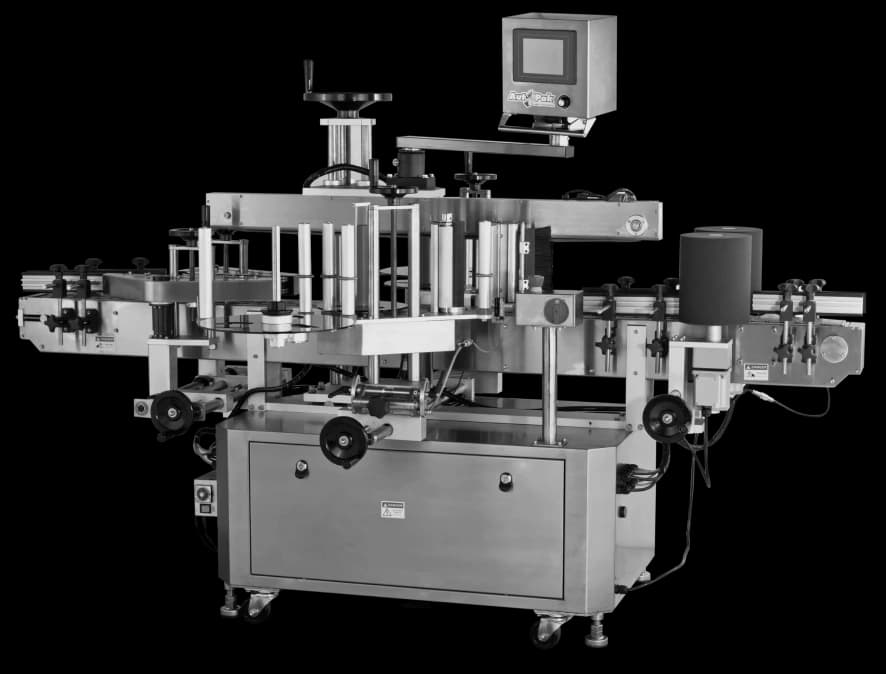

LD-X1 - Excellence in Double-Sided Labeling
Ideal for: Double-sided labeling applications
Weight: 240 kg, robust and designed for continuous operation
Key Advantage: The dual-labeling system operates with efficiently synchronized applicator heads, ensuring precise and reliable performance

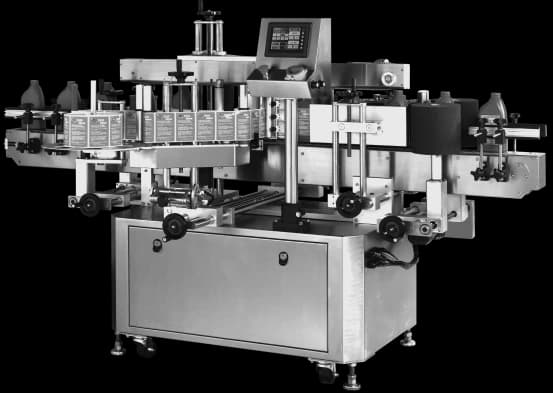

LD-X2 - Enhancing Capabilities
Ideal for: High-volume production with outstanding efficiency.
Advanced Features: Enhanced synchronization and precision control
Key Advantage: High production capacity combined with superior labeling precision
Synchronized Labeling Technology
Innovation: Integrated coordination system involving the top conveyor, guiding mechanisms, and support belts.
Precision: Adjustable labeling angles for conical containers.
Outcome: Perfectly aligned double-label placement with accuracy and consistency across all production cycles.
The value and benefits of implementing dual-sided labeling in industrial facilities
Enhanced Operational Efficiency
The dual-labeling system completes the process in a single pass, reducing handling steps and accelerating production while minimizing labor requirements.
Accuracy and Precision
Synchronized operation ensures that labels are applied correctly, eliminating errors and guaranteeing perfect alignment on both the front and back sides.
Increased Product Value
High-quality production enhances the product’s visual appeal, significantly boosting its perceived value.
Details:
Model
LD-X1
Label Width
10~130 mm (unlimited length)
Labeling Speed
0~30 meters/minute (freely adjustable)
Machine Dimensions (LxWxH)
2555 mm x 1720 mm x 1490 mm
Machine Weight
Approximately 240 kg
Product Thickness
25-200 mm (or as requested)
Product Height
40-330 mm (or as requested)
LD Series Options:
- Can adjust printing both vertically and horizontally
- Transparent sticker reading sensor set
- Position adjustment meter
- Warning light set
Machine structure made from S304 stainless steel and aluminum alloy formed with CNC system, anodized
Uses 5-phase motor (from Japan or equivalent quality grade)
Uses Panasonic high-quality driver and PLC equipment set
Touch screen set uses Fuji brand (or equivalent quality grade)
Sensor set brand SICK (from Germany or equivalent quality grade)
SICK Encoder (from Germany or equivalent quality grade)
PowerFlex inverter
Automatic voltage regulator set, range 190-270 volts
Conveyor belt width 3-1/4"
Conveyor belt width 2.4 meters
Label head tilt adjustment can be adjusted to enhance labeling quality on conical containers
Top conveyor belt and various mechanisms are synchronized to ensure each module works together stably and for labeling accuracy
Conveyor belt height from floor 890-950 mm (or as specified)

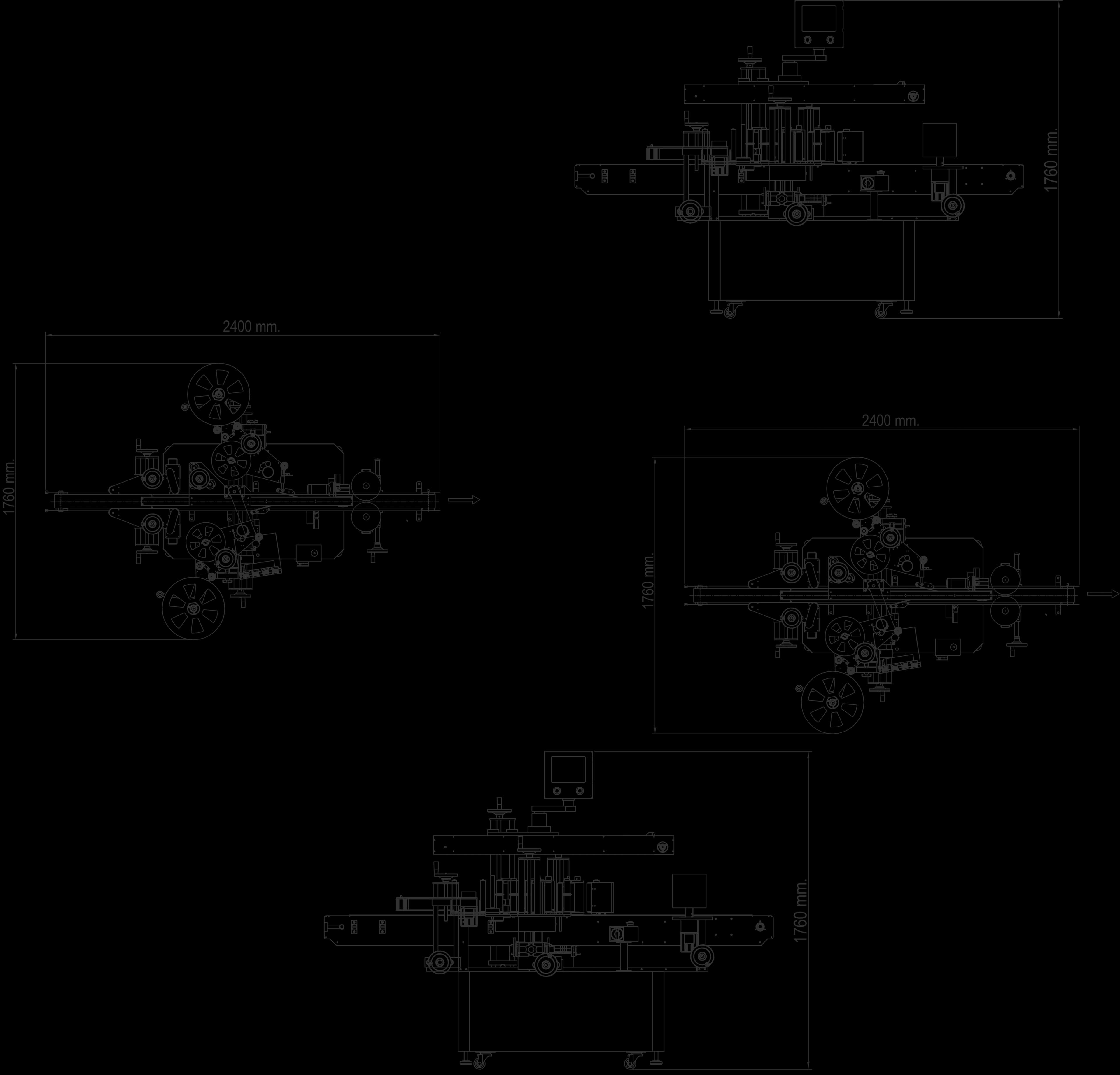

Machine size: length 2400 mm x width 1760 mm x height 1760 mm
Machine weight 250 kg
Power usage: 1200 watts, AC 220 volts 50/60 hertz, 1 phase
Maximum speed 30 meters per minute
Emergency stop button
Label Positions
Frequently Asked Questions (FAQ)
What sets the LD Series apart from other Autopak machines?
LD Series is unique in applying both front and back labels simultaneously, while LT, LR, and LH Series apply single labels. LD Series doubles productivity by applying both sides in one pass.
How does the synchronization system work?
The LD Series utilizes an overhead conveyor system, guiding mechanisms, and synchronized fastening belts to ensure that products pass accurately through labeling points on both sides. This precise arrangement prevents misaligned labels and minimizes the risk of product damage.
Is it possible to manage different label sizes for the front and back?
Each labeling head can be configured independently, allowing the use of different label sizes, types, and designs for the front and back.
What is the maximum product size that can be accommodated?
The LD Series can handle products up to 200 mm in width and 330 mm in height (or custom sizes upon request), covering everything from small bottles to large packages.
Does it comply with export market requirements?
The LD Series is well-suited for bilingual labeling, regulatory-compliant labeling, and premium product presentation required in international markets, making it ideal for export-oriented manufacturers
What happens if one side fails during operation?
The LD Series allows independent monitoring of each labeling head. If one side encounters an issue, the system can be configured either to halt operations or to continue single-side labeling while the issue is being addressed.
