LR Series
LR Series Round Bottle Labeling Machine Thailand's #1 Round Bottle Labeling System Expert
The Autopak LR Series sets a new benchmark for precision in round bottle labeling. Engineered for Thailand’s growing beverage, cosmetics, and pharmaceutical industries, it handles bottles from 30–100 mm. in diameter at speeds of up to 30 meters per minute.
Superior performance and speed
Supporting high-volume production lines with a maximum speed of 30 meters per minute
Unmatched precision in circular labeling
Flawlessly applies labels onto curved surfaces ranging from 30 to 100 mm.
A trusted name with industry-leading credibility
Designed for continuous 24/7 operation in demanding production environments.
Flexible and comprehensive across the entire system
Available in a range of models, from the compact LR-XE1 to the full-featured LR-X2
Industrial Applications LR Series: The Pinnacle of Excellence
Beverage Industry
- Beer bottle labeling for Thai breweries
- Labeling of carbonated soft drinks and fruit juices
- Labeling of energy drinks and health beverages
- Building premium export-quality bottle branding
Cosmetics and Beauty
- Labeling of skincare product bottles
- Identification of perfume bottles and fragrances
- Labeling of shampoo and conditioner containers
- Application in premium cosmetics branding
Pharmaceutical and Healthcare
- Labeling of pharmaceutical bottles in compliance with legal requirements
- Identification of dietary supplement containers
- Labeling of medical device components
- Marking in accordance with FDA and Thai FDA (Thai Food and Drug Administration) regulations
Chemical and Industrial
- Safe labeling of chemical containers
- Marking industrial lubricant bottles
- Identification of cleaning product containers
- Labeling in compliance with hazardous substances and safety regulations
Choose the LR model that truly meets your production needs

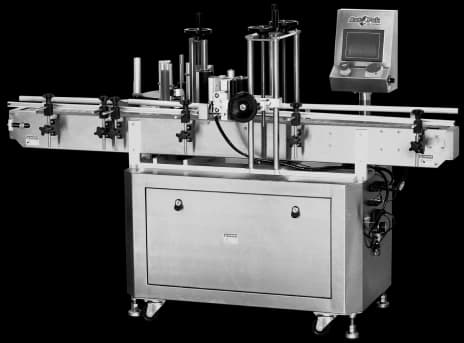

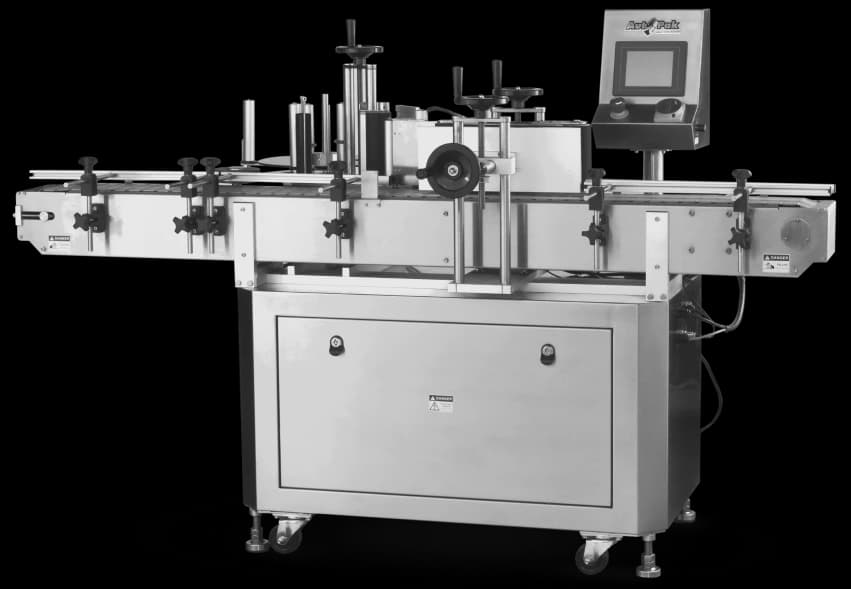

LR-X1 - a fully integrated production line
Ideal for: High-volume beverage and cosmetics production lines
Speed: Maximum speed 18 meters/minute featuring a robust and durable structure with a total weight 160 kg.
Key Advantage: A full-length 2-meter conveyor system designed for continuous operation.
LR-XE1 - Compact Excellence
Ideal for: Lower volume production and facilities where space efficiency is a priority.
Specifications: Weighing only 25 kg, the machine is highly portable and easy to move.
Key Advantage: Despite its ultra-compact dimensions (850 × 420 × 550 mm), it delivers the same high level of precision and performance as larger models.
LR-X2 - Premium Performance
Ideal for: High-end applications requiring both quality and speed.
Speed: Up to 30 meters per minute, designed to meet maximum production demands.
Key Advantage: Exceptional performance tailored for export-standard production lines.
Genuine Benefits for Thai Round Bottle Manufacturers
Increase Production Capacity: Achieve consistent labeling speeds 3–5 times faster than manual labeling.
Improved Accuracy: Minimize misaligned labels and reduce material waste.
Labor Cost Savings: Reduce the need for 1–2 labeling staff and cut overtime during peak periods.
Export-Ready Quality: Ensure a uniform appearance that meets international market standards.
Details:
Model
LR-X1
Label Width
10~130 mm (unlimited length)
Labeling Speed
0~18 meters/minute (freely adjustable)

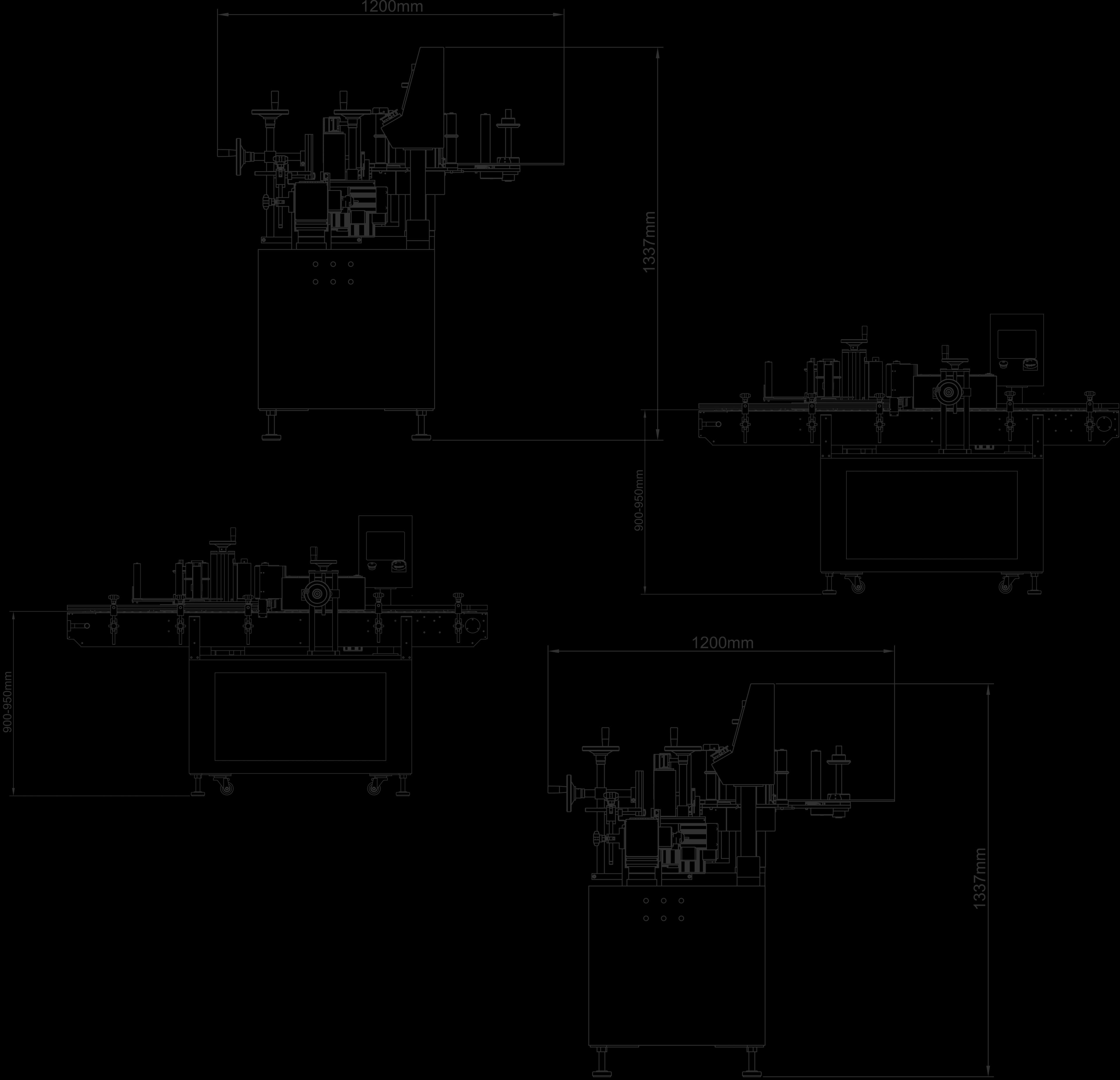

Dimensions (LxWxH)
2050 mm x 1200 mm x 1337 mm
Weight
Approx. 160 kg
Product Thickness
30-100 mm (or as requested)
Details:
Model
LR-XE1
Label Length
10~130 mm
Label Width
6-120 mm
Inner Roll Core Diameter
75 mm (3")
Outer Roll Core Diameter
Below 300 mm
Dimensions (LxWxH)
850 mm x 420 mm x 550 mm
Weight
Approx. 25 kg
LR Series Options:
- Adjustable printing in both vertical and horizontal orientations
- Transparent label sensor reading system
- Automatic workpiece feeder, compatible with both input and output
- Position adjustment meter
- Workpiece storage tray system
- Warning light system
Machine structure made of S304 stainless steel and CNC-formed anodized aluminum alloy
Equipped with a premium 5-phase motor from Japan (or equivalent quality grade)
Using high-quality PLC drivers and equipment from Panasonic
Fuji brand touchscreen display (or equivalent quality grade)
SICK brand sensor set (from Germany or equivalent quality grade)
SICK brand encoder (from Germany or equivalent quality grade)
PowerFlex Inverter
Automatic voltage regulator, range 190-270 volts
Conveyor belt width 3-1/4" plastic slat chain
Conveyor belt length 2 meters
Conveyor height from ground 890-950 mm (or as specified)
Machine dimensions: Length 2000 mm x Width 1200 mm x Height 1300 mm
Machine weight 160 kg
Power consumption: 750 Watts, AC 220 Volts 50/60 Hz, 1 Phase
Maximum speed 30 meters per minute
Emergency Stop Switch
Label Positions
Frequently Asked Questions (FAQ)
What bottle sizes can the LR Series handle?
The LR Series supports round bottles with diameters 30-100mm (or custom sizes upon request), covering everything from small cosmetic bottles to large beverage containers.
How do I choose between the LR-X1, LR-XE1, and LR-X2 models?
Choose LR-XE1 for compact operations and small batch production, LR-X1 for standard production lines with conveyor systems, and LR-X2 for maximum speed and premium applications requiring throughput up to 30 meters/minute.
Can it handle transparent and clear labels?
Yes, all LR Series models have transparent label sensor options for handling clear labels on glass bottles, plastic containers, and specialty applications.
What's the difference between LR Series and LT Series?
The LR Series specializes in round/cylindrical bottle labeling with wrap-around capability, while the LT Series focuses on flat surface labeling. The LR Series also offers higher speeds (up to 30 meters/minute vs 25 meters/minute).
Is it suitable for beverage industry requirements?
Absolutely. The LR Series meets food-grade standards with S304 stainless steel construction and is specifically designed for beverage, cosmetic, and pharmaceutical applications commonly found in Thai production.
What training and support is available?
Autopak provides complete installation, operator training, and ongoing technical support throughout Thailand. Our Bangkok service center ensures rapid response for maintenance and parts.
